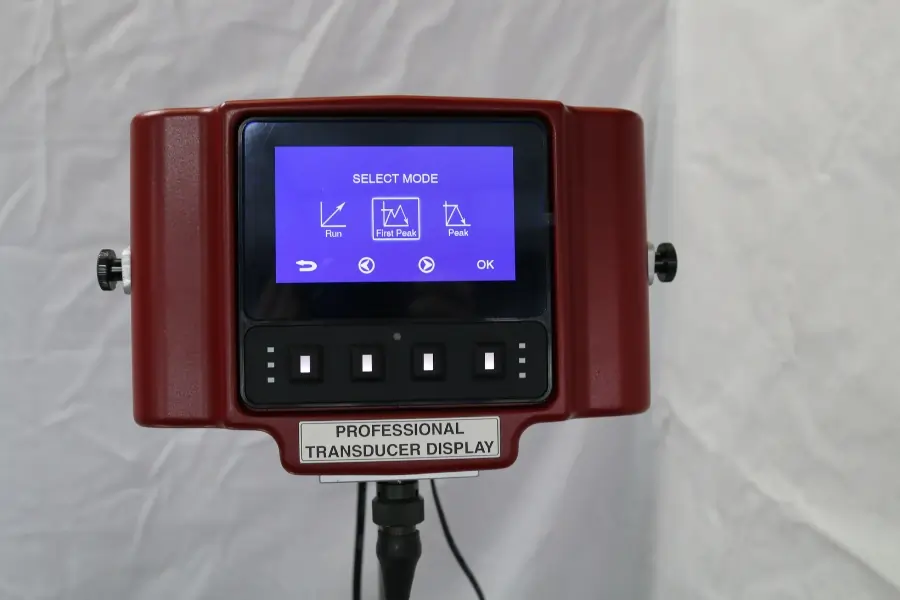

With its large LCD multicolour display, the PTD shows applied torque in digital and analogue bar form. It is designed to work with all AWS I-SERIES Torque Transducers.


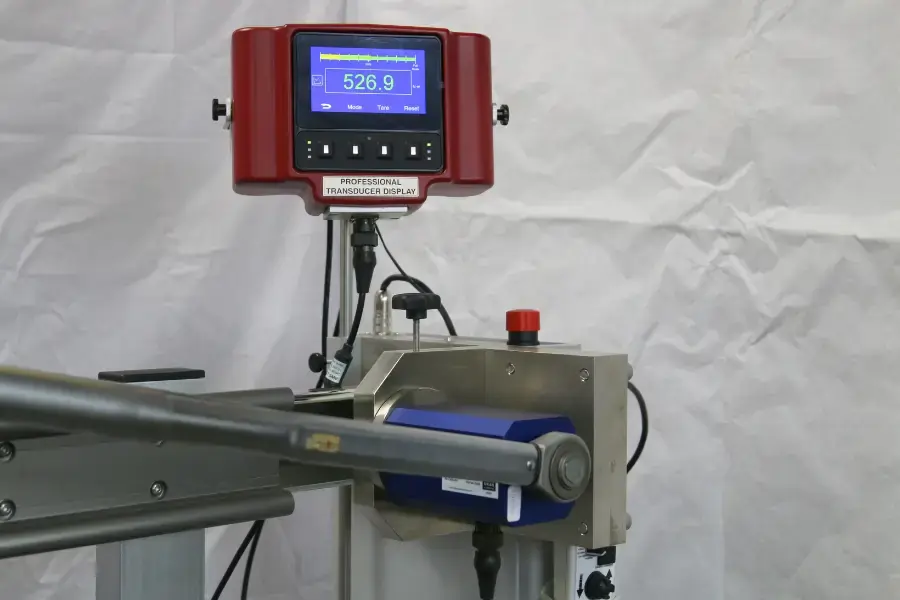

Professional Transducer Display.

Proferrional Transducer Display
PTD

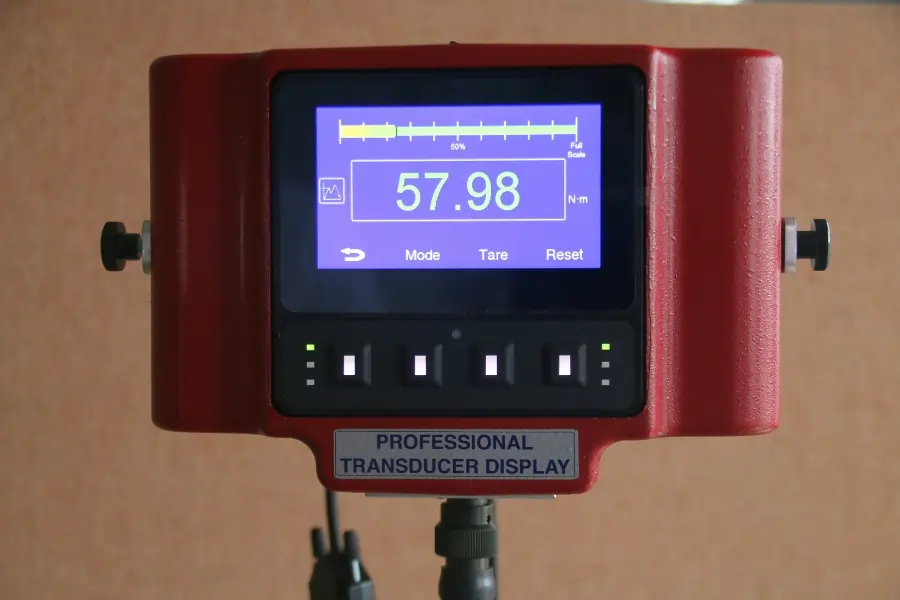

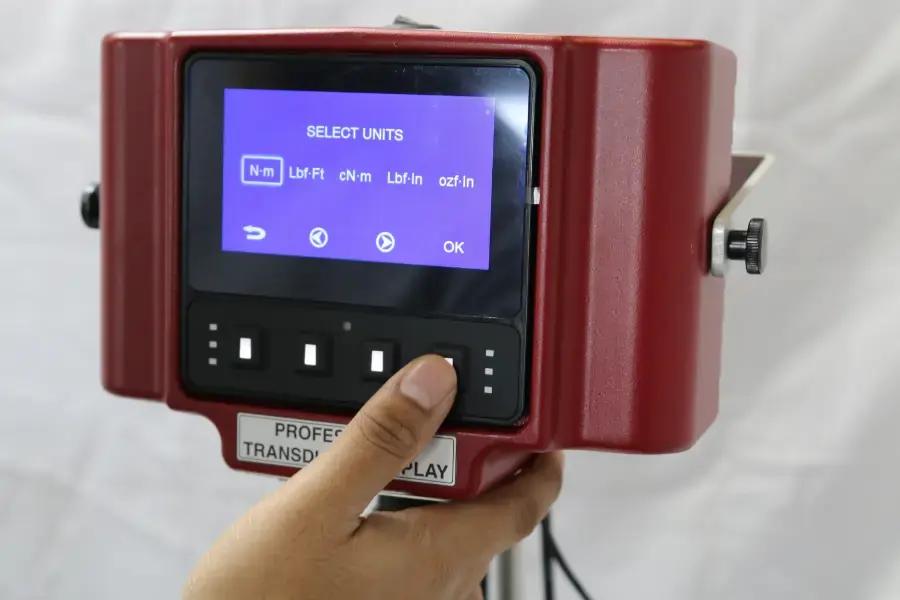

The AWS LTD Professional Transducer Display (PTD), for powering and displaying the readings from AWS LTD Intelligent Torque Transducer ranges (I Series). The PTD features a bright, full colour LCD graphic display, showing the torque reading, both in large 5 digits, and analogue bar graph. It has internal rechargeable batteries for portable operation. Featuring Run, Peak and 1st Peak mode operation (selectable), unit and limits selection via front panel soft keys. When using the limits features, external yellow, red and green LEDs indicate whether torque values are low, high or acceptable, and the 5 digit reading changes colour. The display also indicates the battery level status. The RS232 output enables the PCTU to be connected to a PC for direct input into ADMS Kepler 4          Torque Tool Calibration Software (sold separately).

An optional PTD stand (purchased separately) for bench or wall mounting is available. The PTD-H is a more rugged option for demanding environmental climates. The PTD covers our whole range of of I Series transducer sizes and displays torque in Nm, cNm, Lbf.Ft and Lbf.In.



The PTD features:

  • Communicates to any AWS LTD I Series Transducer via CANBUS

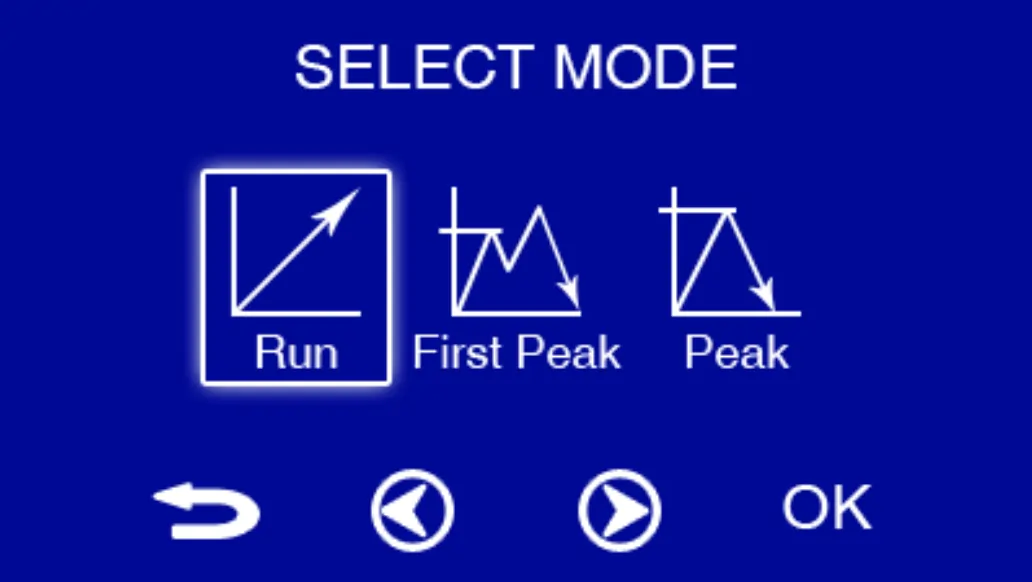

  • Three modes of operation: Run (for Dial types), 1st Peak (for Click types) and Peak (for Cam types)
  • 5 digit reading display

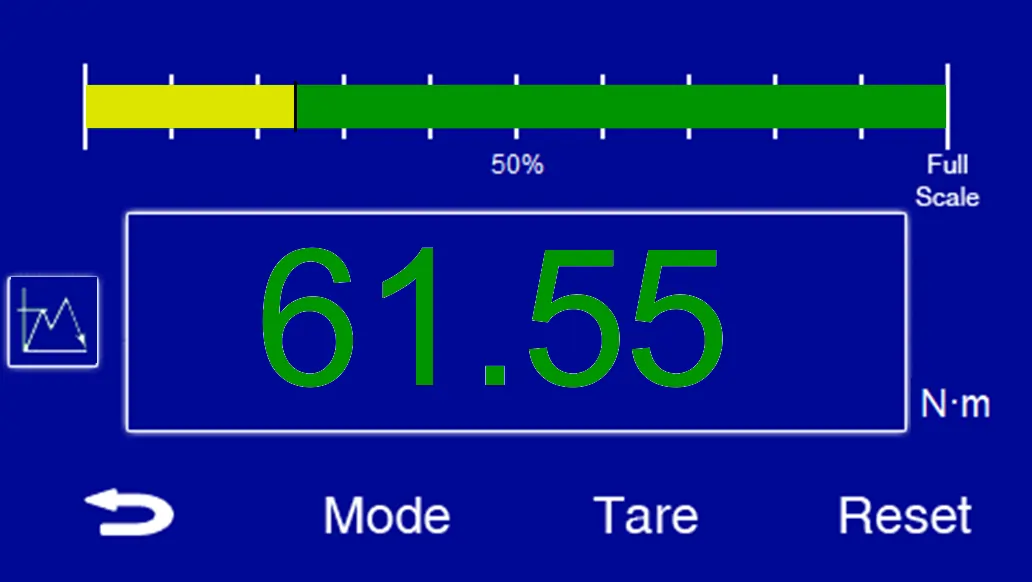

  • Full scale bar graph
  • Optional limits: Low, Pass and High

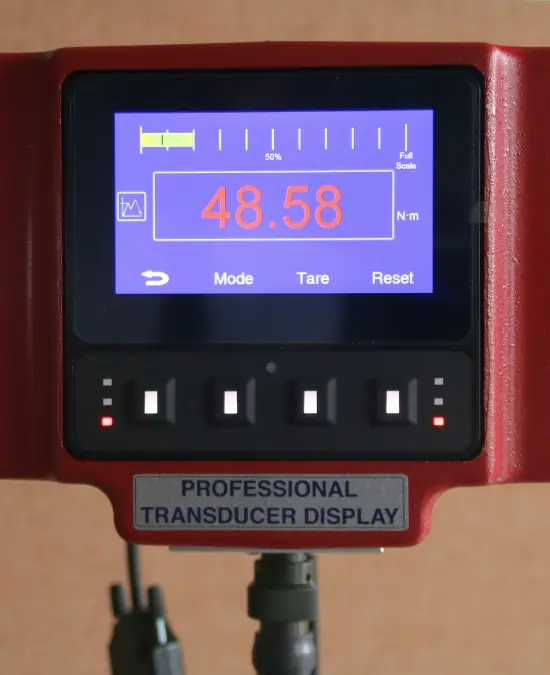

  • Limit visualisation by LED indication and text colour change
  • Full colour LCD screen
  • Soft key operation
  • RS232 data output
  • Rechargeable batteries

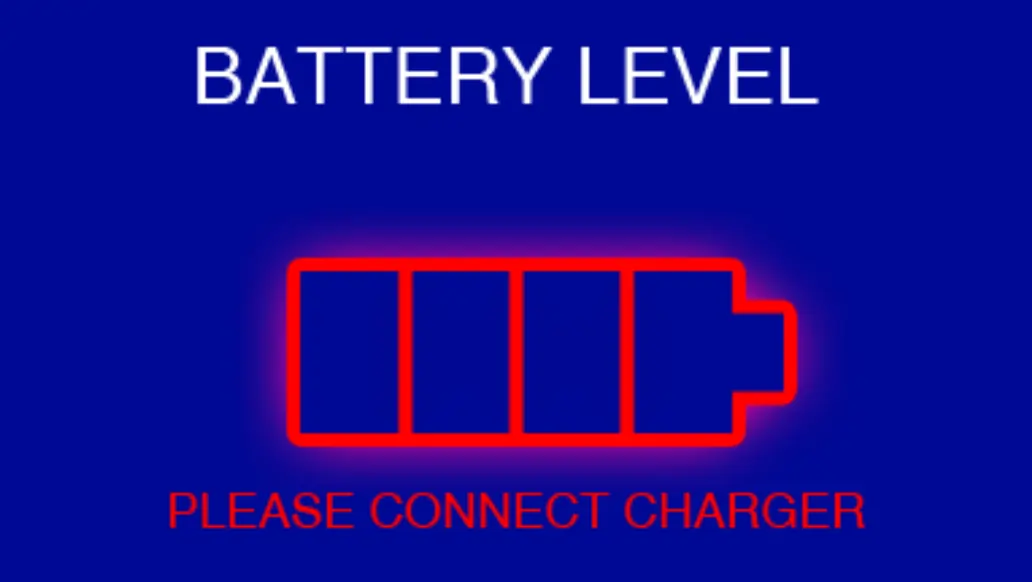

  • On screen battery status indication
  • Handheld
  • Wide operating temperature range
  • Optional bench/wall mount (purchased separately)
  • Fitted with a rugged MIL-C Female connector (MIL-DTL-26482)

Downloads:


Sales Sheet

Datasheet

Manual
The PTD covers our whole range of of I Series transducer sizes and displays torque in Nm, cNm, Lbf.Ft and Lbf.In.

Model
Specification
PTD - 1010
Casing has a rugged solid design to withstand high shock damage. Rated to IP ##
PTD - 1010HCasing has a rugged solid design to withstand high shock damage. The display contains a heater enabling it to be used at subzero temperatures. Rated to IP 67

To find out more download our pdf datasheet.

Professional Transducer Display Stand.

PTD Stand

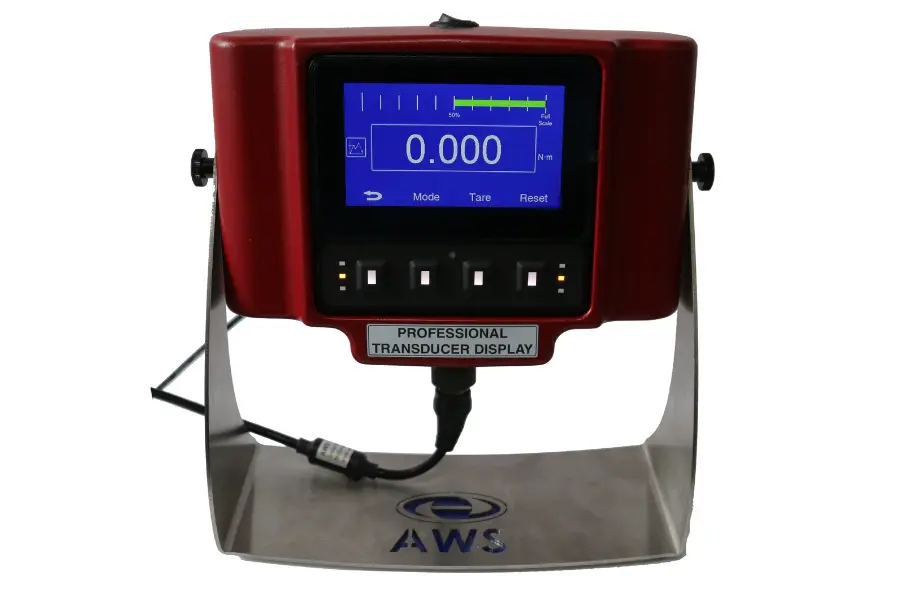

The AWS LTD Professional Transducer Display Stand (PTDS), which is used to mount the AWS LTD Professional Transducer Display (PTD and PTD-H) to a bench or wall in the lab/workshop.



The Professional Transducer Display (not included) can be removed from the stand at any time to be used independently in the lab or field.


Downloads:


Sales Sheet

Datasheet

Manual


12V DC Mains Charger.

This a 12V charger for use with a selection of our products. It will be fitted with a UK or EURO plug depending on requirements.

Model: 1021

Models to be used with-


PTTT-1005


PTD-1010

To find out more download our pdf datasheet.


Downloads:


Sales Sheet

Datasheet
