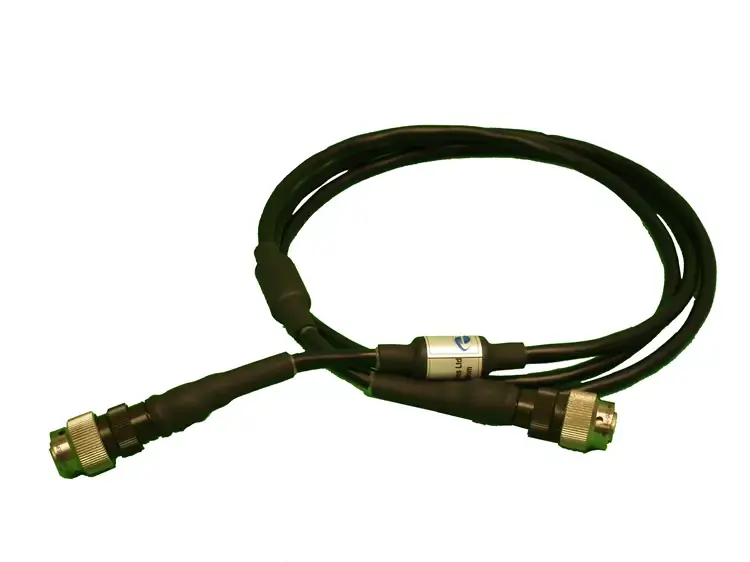

The AWS Intelligent Torque Transducer Cable (ITC) is used to connect any AWS Intelligent (I Series) Torque Transducer to the AWS Professional Transducer Display (PTD).
It is fitted with a female MIL C connector on the torque transducer side, and a male MIL C connector on the display side.
These cables come in a selection of standard lengths, or if a specific length is required, we will manufacture to specification.
| Model: ITC-1009- | 1 | 2 | 5 | 10 |
|---|---|---|---|---|
| Length: | 1m | 2m | 5m | 10m |
The AWS N-SERIES Torque Transducer Cable (NTC) is our basic cable for connecting our A Series and N Series torque transducers to other manufacturer's displays which use MIL-C or LEMO connectors for signal input.
| Model: NTC- | 2008 | 2009 | 2010 |
|---|---|---|---|
| Female Connector: | 6 Pin MIL-C | 6 Pin MIL-C | 10 Pin MIL-C |
| Male Connector: | 6 Pin MIL-C | 10 Pin LEMO | 10 Pin LEMO |
These cables come in a selection of standard lengths, or if a specific length is required, we will manufacture to specification.
| Model: NTC-20##- | 1 | 2 | 5 | 10 |
|---|---|---|---|---|
| Length: | 1m | 2m | 5m | 10m |
The AWS Vertical / Horizontal Inline Transducer Mounting Bracket (ITMB), enables the vertical and horizontal bench mounting of the AWS Inline Torque Transducers (IITT, AITT and NITT).
When mounted vertically the transducers can be used with an ISO torque wrench calibration machine.
When mounted horizontally, we offer a base plate to allow the ITMBs to be bolted to a bench.
With use of the Precision Torque Adapters, the ITMB-1025 and ITMB-1027 can be used with a smaller drive size to remove the need for more than one mounting bracket if required.
| Model: ITMB- | 1024 | 1025 | 1026 | 1027 |
|---|---|---|---|---|
| Square Drive Size: | 1/4" | 3/8" | 1/2" | 3/4" |
| Compatible With: | ||||
| IITT: | 1011, 1012 | 1013 | 1014 | 1015, 1016 |
| AITT: | 2011, 2012 | 2013 | 2014 | 2015, 2016 |
| NITT: | 3011, 3012 | 3013 | 3014 | 3015, 3016 |
