2Nm Unsupported Calibration Wheel

The AWS 2Nm Unsupported Calibration Wheel is designed for the calibration of torque measuring devices from 0.04 - 2Nm using the principle of beams and weights at a known distance.

High Accuracy, Low Uncertainty

The 2Nm Unsupported Calibration Wheel features uncertainty of measurement better than 0.2% of the reading, and is able to cover from 0.04Nm to 2Nm.

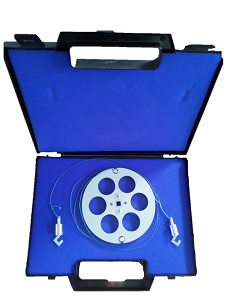

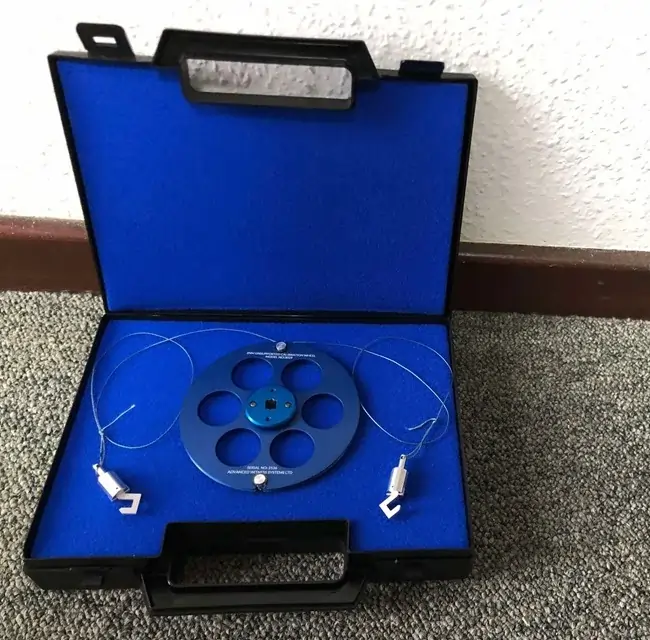

Blue torque wheel stored in a blue carry case

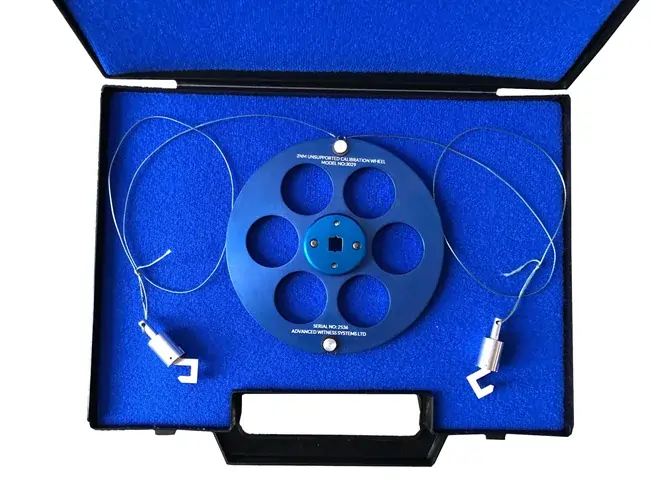

Blue torque wheel in blue carry case on a white background

Precision Machined Boss

The precision method wheel includes a precision drive machined into the boss to fit a wide range of torque devices to be calibrated.

The boss is easily interchangeable if an alternative drive size is required. Both Female 1/4" Square and Female 1/4" Hex drives are provided as standard to allow for the calibration of a wide range of torque measuring devices.

Complete With Accessories

When purchasing the 2Nm Unsupported Calibration Wheel, you will also be provided with a precision weight pan and counterweight set, cables, suspension hooks and a robust carry case.

A UKAS calibration is also available on request.

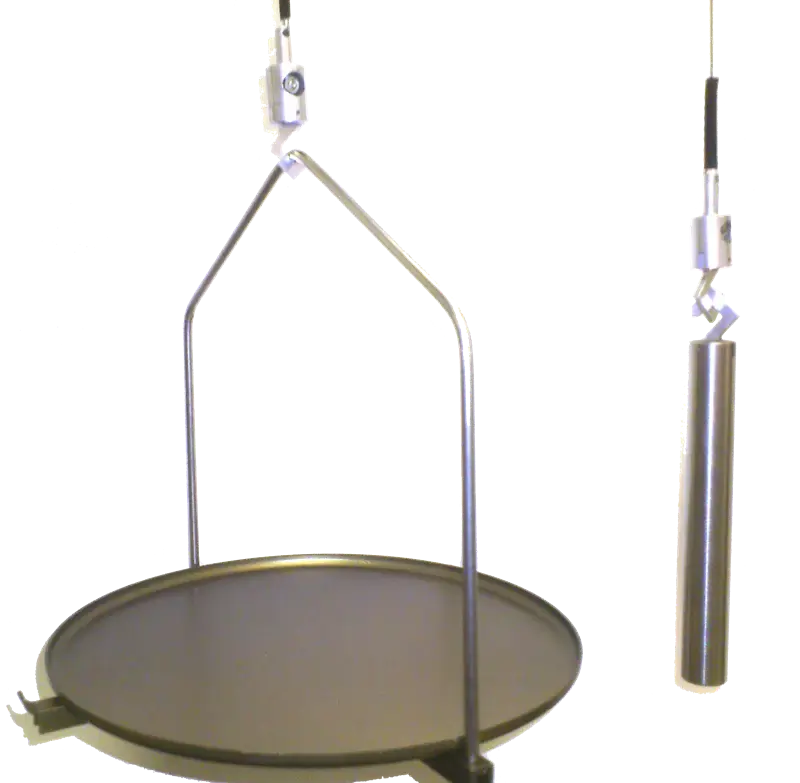

Bronze coloured metrology weight pan and counterweight
Set of 15 brass weights on a white sheet of paper

Optional Weights Set

AWS can provide a set of 15 precision brass weights for use with the 2Nm Unsupported Calibration Wheel to calibrate up to the rig's maximum capacity.

A calibration certificate is included and the weights are supplied in a robust carry case. A UKAS calibration is available on request.

The Weight Set features:
- Metric kg and g weights
- M1 tolerance weights set as standard
- Other tolerances available on request
- Robust carry case included
- UKAS calibration available on request

Dimensions

Overall Diameter:104mm
Thickness:10mm across boss
Length of Suspension Filament:Approximately 400mm per side
